Awning Windows

Paragon awning window in Monument Matt

Awning Windows give the appearance of a fixed window with the convenience of being hinged at the top to provide convenient operation and controlled ventilation.

Aluminium and Timber Awning Windows are available in the following Wideline ranges:

Hinged at the top to provide convenient operation and controlled ventilation, awning windows offer superior energy efficiency.

Awning Windows give the appearance of a fixed window with the convenience of an openable one.

The Horizon aluminuim awning window offers a clean, balanced appearance and is the perfect all-rounder. Horizon awning windows operated by a winder at the windowsill. They can be opened for ventilation whilst simultaneously providing protection from the rain and strong winds.

For a comprehensive view of all awning window combinations and sizes, download our Horizon Technical Guide for a full listing of Wideline’s standard window sizes.

The Ascend awning window delivers architectural lines offering a clean, well balanced aesthetic and is the perfect addition to any home. Robust 100 x 25mm standard frame or 100 x 40mm frame and double perimeter sash seals provide perfect protection in inclement weather. Incorporate fixed lites, highlights or transoms for larger window expanses.

Architectural elegance, design flexibility and great aesthetic appeal are the ‘built-in’ hallmarks of Wideline’s Paragon awning windows. Hinged at the top, the Paragon aluminium awning window provides controlled ventilation and an elegant solution for windows exposed to wind and rain. Our versatile sash panels can also be manufactured up to a generous 2100 mm high and 850 mm wide.

Natura timber awning windows create a sought after, clean balance that is both aesthetically pleasing and easy to maintain. The strong, external frame and full perimeter sash seal offer maximum weather protection while simultaneously reducing air filtration when fully closed. The Natura timber awning window frame rates to 150pa as standard with higher ratings available for more exposed locations.

Technical

 ParagonAscend40Ascend25Horizon
Frame Depth150 or 100150 or 10010052
Maximum Panel Height2350mm2100mm2100mm2100mm
Maximum Panel Width2400mm2400mm2400mm2700mm
Maximum Glass Thickness24mm24mm24mm20mm

Features

 ParagonAscend40Ascend25Horizon
SHGC Range0.2-0.490.22-0.550.23-0.580.24-0.64
Maximum Water Rating450Pa450Pa600Pa450Pa
Maximum Bushfire RatingBAL-40BAL-40BAL-40BAL-40

Performance

 ParagonAscend40Ascend25Horizon
Architectural lines
Superior Truth hardware
Key locking system in various openable positions
Full perimeter sash seals for added weather protection
Halo Aquashield™ integrated flashing for light weight construction
Screenable
* Configuration subject to site conditions
Natura timber awning and casement windows
Natura timber awning and casement windows, Wideline Rosebery Showroom
Natura timber awning window
Natura timber awning window
Kingsford project: Paragon awning windows in Monument Matt with Precious Silver hardware
Kingsford project: Paragon awning windows in Monument Matt with Precious Silver hardware
Paragon awning windows in Surfmist Matt
Yellow Rock project: Paragon awning windows in Surfmist Matt with satin chrome Truth hardware

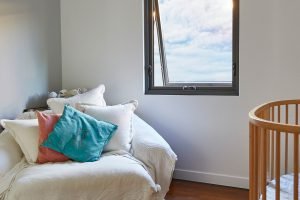

Paragon awning window in Monument Matt
Kingsford project: Paragon awning window in Monument Matt with Precious Silver hardware
Paragon awning windows in Precious Silver
Paragon awning windows in Precious Silver, Wideline Rosebery Showroom
Kingsford project: Paragon awning window in Monument Matt
Kingsford project: Paragon awning window in Monument Matt
Paragon awning window in Monument Matt
Coffs to Cali: Paragon awning window in Monument Matt
Paragon awning window in Monument Matt
Coffs to Cali: Paragon awning window in Monument Matt

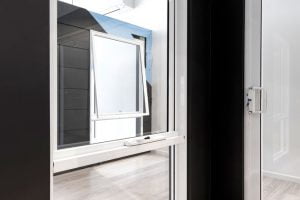

Ascend awning window in Pearl White
Ascend awning window in Pearl White
Ascend awning window chainwinder in Pearl White
Ascend awning window chainwinder in Pearl White
Ascend awning window in Pearl White
Ascend awning window in Pearl White
Horizon awning window in Pearl White external view
Horizon awning window in Pearl White external view, Wideline Liverpool Showroom

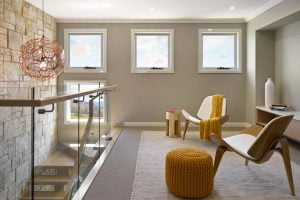

Horizon awning windows in Pearl White, Kurmond
Horizon awning windows in Pearl White, Kurmond
Natura timber awning and casement windows
Natura timber awning window
Kingsford project: Paragon awning windows in Monument Matt with Precious Silver hardware
Paragon awning windows in Surfmist Matt
Paragon awning window in Monument Matt
Paragon awning windows in Precious Silver
Kingsford project: Paragon awning window in Monument Matt
Paragon awning window in Monument Matt
Paragon awning window in Monument Matt
Ascend awning window in Pearl White
Ascend awning window chainwinder in Pearl White
Ascend awning window in Pearl White
Horizon awning window in Pearl White external view
Horizon awning windows in Pearl White, Kurmond
